Create a Rule

In the case a Tornado Event matches a Rule based on its conditions, the Rule would trigger an Action, e.g. command, process or operation, depending on your needs.

  1. Select or add a Ruleset in a Processing Tree

    All the rules presented in a Processing Tree belong to a particular Ruleset. Thus, you will have to make sure you have selected the right child node, i.e. a Ruleset, based on the procedure defined in Add a Node section.

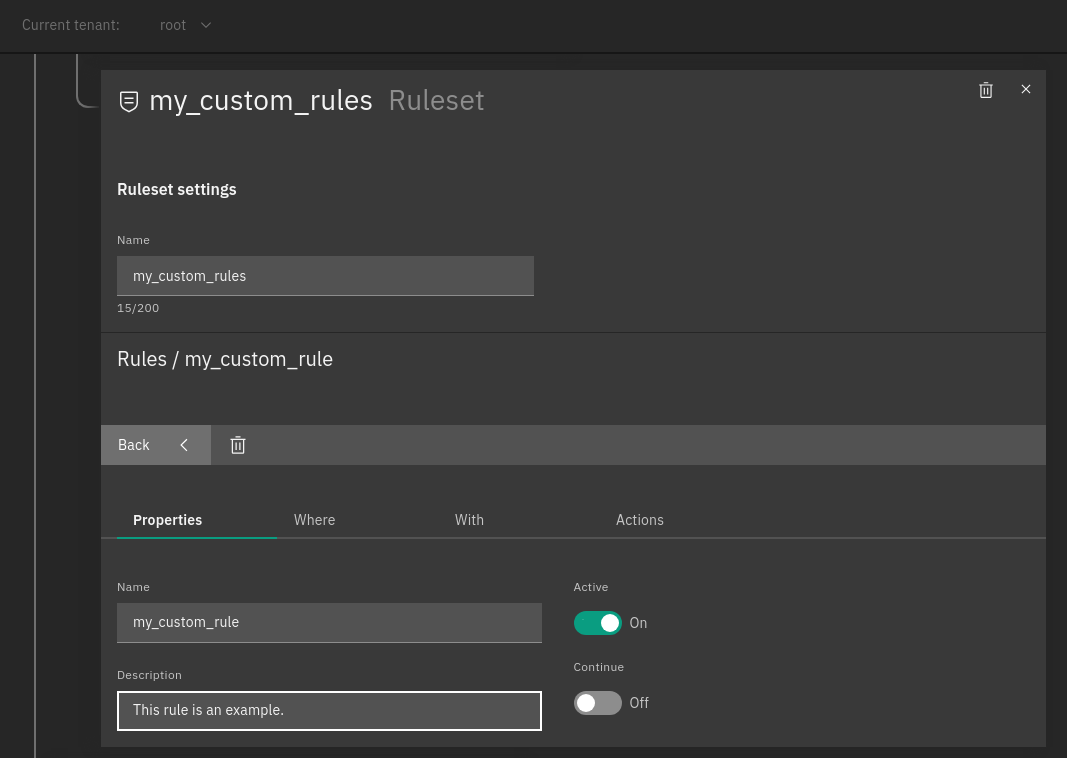

  2. By clicking on a Rule item or on the “Add rule” button, a form to add or edit a rule, respectively, opens. It is organized in tabs:

  1. Provide data for the basic Properties of a Rule:

  • rule name: A string value representing a unique rule identifier. It can be composed only of alphabetical characters, numbers and the “_” (underscore) character.

  • description

  • continue: A boolean value indicating whether to proceed with the event matching process if the current rule matches.

  • active: A boolean value; if false, the rule is ignored.

  1. Define conditions of a rule that would serve as matching principles for the events.

    The conditions are defined with the help of Constraints. There are two types of them:

  • WHERE: A set of operators that allows you to specify the condition where the rule should be matched; when applied to an event returns true or false

  • WITH: A set of regular expressions that extract values from an Event and associate them with named variables

    An event matches a rule only if the WHERE clause evaluates to true and all regular expressions in the WITH clause return non-empty values.

    Depending on the constrains used, you can add a rule to extract variables from the payload of an event. For this, an extractor should be added inside the WITH tab of a particular rule. All extracted variables are displayed in the Test Event panel.


Fig. 156 Sample of extracted variables
