User Guide

SQLTrace

Overview

SQLTrace is a Windows service that was initially created to monitor a Microsoft SQL Server instance with main focus on the performances of queries.

Microsoft SQL Server by itself exposes a variety of Windows Performance Counters metrics that can be collected with telegraf agent.

SQLTrace also extends and integrates into Neteye’s ITOA module gathering and processing additional data. As a strong point it provides metrics with a context, which helps in the analyzes: sqlinstance, sqluser, sqlsession, clienthost and more.

Over time a number of additional modules have been introduced to extend the monitored areas of SQL Server:

  • transactions

  • locks

  • headblockers

  • deadlocks

  • database growth

Another class of modules has been introduced to cover monitoring of external applications using SQL Server as database, which at the moment are:

  • Microsoft Dynamics AX 2012

  • Microsoft Dynamics 365 Finance & Operations

Usage Scenarios

Identify resource consuming queries

Workload generates a huge amount of queries and it is not immediate to identify those that are consuming the most resources. With SQLTrace it is really straightforward to identify the cost of queries in a given time interval through all the necessary metrics: cpu time, elapsed time, writes, reads, number of executions.

Identify bad query execution plans

The same query can have very different performances under different conditions: this is typically due to the execution plan. SQLTrace allows you to check which execution plan is in use in a certain time interval, and then to view it in SQL Server Management Studio.

A famous and annoying problem like bad parameter sniffing execution plan is easly detected and solved with SQLTrace.

A/B testing

SQL Server developer & admins introduce changes such as for example creating an index: SQLTrace immediately measures the impact of this change on queries duration and resource consumption.

Identify and solve long running transactions

SQL Server admins have to take into account long running transactions, which damage both the optimal functioning of the SQL Server instance and the application workflow (e.g. an ERP) on top of SQL Server. SQLTrace helps solving the problem and understand the root causes for a definitive solution.

Headblockers

Who deals with SQL Server knows that it bases on locks. A very bad situation can occur when for a wide variety of possible reasons in this hell of locks one or more transactions block other transactions. SQLTrace aids in quickly and confidently identifying the headblocker allowing to reactivate the workflow and analyze the source of the problem.

Monitoring of Microsoft SQL Server Queries’ Execution

../_images/sqlxeview-general.png

Fig. 172 SQLXEview dashboard

Exposed metric: sqlXeEvents

sqlXeEvents metric collects details on queries execution and it is based on Extended events of type sp_statement_completed,sql_statement_completed,rpc_completed.

sqlXeEvents,SqlQueryHash=2227549628205840796,SqlEventName=sp_statement_completed,SqlHostName=axpraos01,AxUser=axuser1,SqlUser=dm\aossvcuser,DatabaseName=axproddb,result=OK,host=axprodsqlnode,SQLInstance=axprodsqlnode,uniquifier=0 isFetch=0i,queryplan_hash=2227549628205840796,hex_queryplan_hash=0x1EE9D895B4C3399C,hex_query_hash=0x1EE9D895B4C3399C,cpu_time=32132i,duration=37132i,logical_reads=19i,physical_reads=0i,row_count=0i,writes=0i,session_id="73",session_id="8125"
Table 58 Tags

Name

Description

SqlQueryHash

queryhash in decimal format

SqlEventName

Extended event type, possible values:sp_statement_completed,sql_statement_completed,rpc_completed

SqlHostName

Host that produced the query

AxUser

AX user_id

SqlUser

SQL user_id: it is a domain user

DatabaseName

Database name

result

For rpc_completed events only, possible values: OK,Error,Abort

host

Hostname of server hosting SQL Server instance

SQLInstance

SQL Server instance

uniquifier

Technical tag inserted to avoid data-loss

Table 59 Fields

Name

Description

isFetch

Boolean, value 1 if query is a fetch

queryplan_hash

String, queryplan_hash in decimal format

hex_queryplan_hash

String, queryplan_hash in hexadecimal format

hex_query_hash

String, queryhash in hexadecimal format

cpu_time

Integer, microseconds of cpu time

duration

Integer, microseconds of elapsed time

logical_reads

Integer, number of pages read from buffer

physical_reads

Integer, number of pages read from storage

row_count

Integer, number of rows affected

writes, number of pages written

Integer, number of pages written

session_id

String, SQL session_id (spid)

AxSession

String, AX session_id

Totals

sqlXeEvents metric with detail of event type: gives an efficient view on query execution engine status.

../_images/sqlxeview-totals.png

Fig. 173 sqlXeEvents charts for physical_reads,logical_reads,writes,cpu_time,duration,count grouped by SqlEventName

Query hash statistics

sqlXeEvents is a metric with detail of queryhash and gives an efficient view on how each query is performing.

../_images/sqlxeview-queryhash.png

Fig. 174 sqlXeEvents charts for cpu_time,duration,physical_reads,logical_reads,writes grouped by SqlQueryHash

RPC events

sqlXeEvents is metric limited to event type rpc_completed and it is immediate to see if there are queries ending in an error or killed (by an admin, system itself ..).

../_images/sqlxeview-rpc.png

Fig. 175 sqlXeEvents result field charts with SqlEventName equal to rpc_completed

Query hash/users count

sqlXeEvents is a metric with detail of queryhash and AX user and it is straightforward way to see which user is calling an interesting query.

../_images/sqlxeview-counts.png

Fig. 176 sqlXeEvents charts for count grouped by SqlQueryHash and AxUser

Detail table

sqlXeEvents metric exposed in a table where we can search and visualize each single event.

../_images/sqlxeview-queriestable.png

Fig. 177 sqlXeEvents table

Exposed metric: sqlXeFetches

sqlXeFetches is a metric that collects details on fetches built with a structure very similar to sqlXeEvents to make links easier. It is based on Extended events combined with queries on DMVs.

The great benefit of this metric is the possibility to know the query linked to fetches, which is natively not possible in SQL server.

sqlXeFetches,uniquifier=0,SQLInstance=axprodsqlnode,host=axprodsqlnode,query_hash=2227549628205840796,query_plan_hash=2227549628205840796,query_plan_hash_hex=0x1EE9D895B4C3399C,query_plan_hash_hex=0x1EE9D895B4C3399C,SqlHostName=axpraos01,AxUser=axuser1,SqlUser=dm\aossvcuser cpu_time=32132i,duration=37132i,logical_reads=19i,physical_reads=0i,row_count=0i,writes=0i,session_id="73",cursor_id="180261859",AxSession="8125"
Table 60 Tags

Name

Description

uniquifier

Technical tag inserted to avoid data-loss

SQLInstance

SQL Server instance

host

Hostname of server hosting SQL Server instance

query_hash

queryhash in decimal format

query_hash_hex

queryhash in hexadecimal format

query_plan_hash

queryplan_hash in decimal format

query_plan_hash_hex

queryplan_hash in hexadecimal format

SqlHostName

Host that produced the query

AxUser

AX user_id

SqlUser

SQL user_id: it is a domain user

Table 61 Fields

Name

Description

cpu_time

Integer, microseconds of cpu time

duration

Integer, microseconds of elapsed time

logical_reads

Integer, number of pages read from buffer

physical_reads

Integer, number of pages read from storage

row_count

Integer, number of rows affected

writes, number of pages written

Integer, number of pages written

session_id

String, SQL session_id (spid)

cursor_id

String, SQL cursor_id

AxSession

String, AX session_id

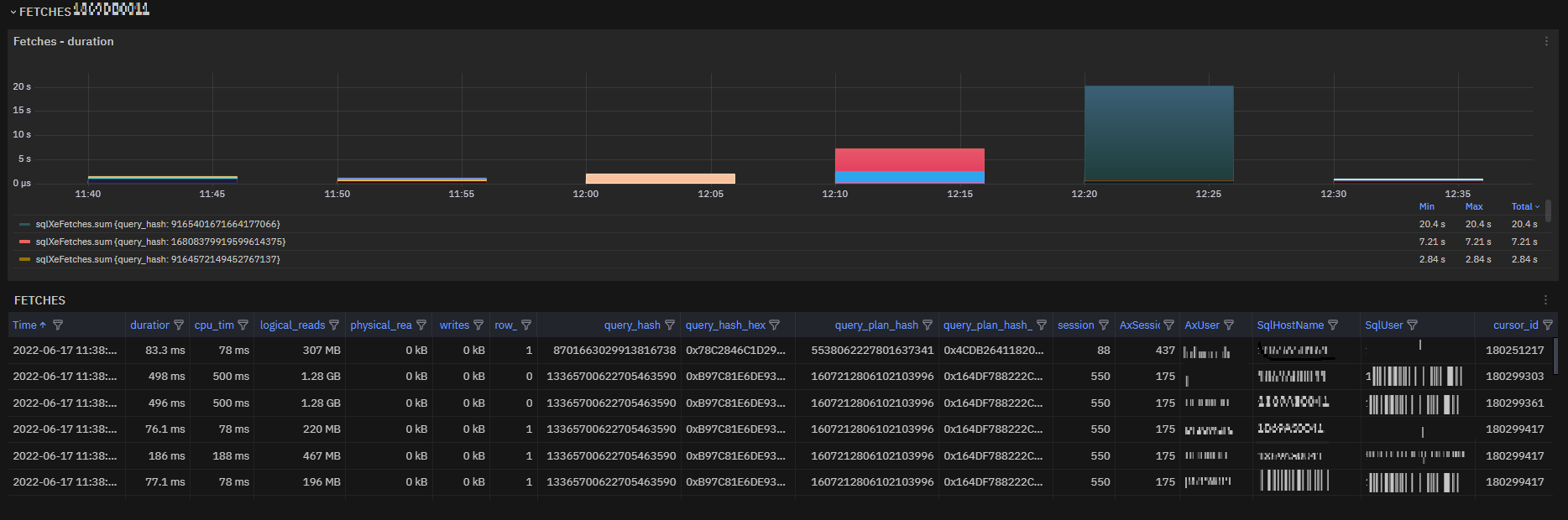

sqlXeFetches metric is exposed in a chart for a first glance and in a table for a deeper insight overview.

../_images/sqlxeview-fetches.png

Fig. 178 sqlXeFetches table and chart for duration group by query_hash

Monitoring of Microsoft SQL Server Blocking/Deadlocks

../_images/block-general.png

Fig. 179 Microsoft SQL Server Blocking/Deadlocks dashboard

Blocking/Deadlocks instances status

The first row of charts shows two Windows Performance Counters exposed my MS SQL Server:

  • General_Statistics::Processes_blocked

  • Locks::Number_of_Deadlocks_persec

../_images/block-overview.png

Fig. 180 Blocked Processes and Deadlocks time series charts

Exposed metric: SQLLongTransaction

SQLLongTransaction metric collects details about all transactions lasting longer than 15 seconds.

This metric is based on Extended events combined with queries on DMVs.

SQLLongTransaction,host=axprodsqlnode,AXUser=axuser1,LoginName=dm\aossvcuser,ClientHostName=axpraos01,SQLInstance=axprodsqlnode NrSessions=1i,ALLSQLSessions="171",ALLAxSessions="893",MaxAxSession="893",ALLDurations="30",MaxDuration=30i,ALLCurrentRequest="32",ALLLastBatches="32",MaxLastBatch=32i
Table 62 Tags

Name

Description

host

Hostname of server hosting SQL Server instance

AxUser

AX user_id

LoginName

SQL user_id: it is a domain user

ClientHostName

Host that produced the query

SQLInstance

SQL Server instance

Table 63 Fields

Name

Description

NrSessions

Integer, numeber of sessions

ALLSQLSessions

String, list of SQL session_id (spid)

ALLAxSessions

String, list of AX session_id

MaxAxSession

String, AX session_id corresponding to maximum transaction duration

ALLDurations

String, all transaction durations in seconds

MaxDuration

Integer, maximum transaction duration in seconds

ALLCurrentRequest

String, all current requests elapsed time since request’s start in seconds

ALLLastBatches

String, all last batch duration in seconds

MaxLastBatch

Integer, maximum batch duration in seconds

SQLLongTransaction metric metric is exposed in a chart to show an overview.

../_images/block-longtrchart.png

Fig. 181 Long transactions chart: MaxDuration field

SQLLongTransaction metric is also exposed in a table for deeper insights.

../_images/block-longtrtable.png

Fig. 182 Long transactions table

Exposed metric: SQLHeadBlockers

SQLHeadBlockers metric collects details about all blocking and blocked transactions.

This metric is based on Extended events combined with queries on DMVs.

SQLHeadBlockers,host=axprodsqlnode,AXUser=axuser1,LoginName=dm\aossvcuser,ClientHostName=axpraos01,SQLInstance=axprodsqlnode AXSession="893",SQLSession="171",MaxWaitInSec=23i,NrOfWaitingSessions=1i,BlockedAxUsersChain="axuser1>>axuser2",BlockedAxSessionsChain="893>>27",BlockedSQLSessionsChain="171>>334",BlockedSQLClientHostName="axpraos01>>axpraos01",AllWaitsinSecList="0>>23"
Table 64 Tags

Name

Description

host

Hostname of server hosting SQL Server instance

AxUser

AX user_id

LoginName

SQL user_id: it is a domain user

ClientHostName

Host that produced the query

SQLInstance

SQL server instance

Table 65 Fields

Name

Description

AXSession

String, AX session_id of head blocker

SQLSession

String, SQL session_id (spid) of head blocker

MaxWaitInSec

Integer, maximum waiting time of blocked sessions

NrOfWaitingSessions

Integer, number of blocked sessions

BlockedAxUsersChain

String, schema of blocked chain for AX users

BlockedAxSessionsChain

String, schema of blocked chain for AX sessions

BlockedSQLSessionsChain

String, schema of blocked chain for SQL sessions

BlockedSQLClientHostName

String, schema of blocked chain for SQL host clients

AllWaitsinSecList

String, schema of blocked chain with waiting time detail in seconds

Blocked chain notation:

Symbol

Description

>>

Used to indicate a block, on the left the blocking session/user and on the right the blocked sessions/users. Example: axuser1 >> axuser2

|

Used to separate sessions/users at the same block level of the chain. Example axuser1 >> (axuser4|axuser3|axbatchuser2)

()

Used to group sessions/users at the same block level of the chain. Example axuser1 >> (axuser2|axuser3)

SQLHeadBlockers metric metric is exposed in a chart to show an overview.

../_images/block-headbtrchart.png

Fig. 183 Head Blockers chart: MaxWaitInSec field

SQLHeadBlockers metric is also exposed in a table for deeper insights.

../_images/block-headbtrtable.png

Fig. 184 Head Blockers table

Exposed metric: SQLDeadlockStats

SQLDeadlockStats metric collects details about all blocking and blocked transactions.

It is based on Extended events combined with queries on DMVs.

SQLDeadlockStats,host=axprodsqlnode,LoginName=dm\aossvcuser,ClientHostName=axpraos01,SQLInstance=axprodsqlnode,WaitObjectname=AXPRODDB.dbo.TMSRATEDETAILS,WaitIndexname=I_102463RECID

NrOfVictims=1i,SQLSessionId="188",Waittime=435i,WaitResource=""KEY: 5:72057763523526656 (62c716f85be8)",WaitMode="X",WaitObject="AXPRODDB.dbo.TMSRATEDETAILS",WaitIndex="I_102463RECID",WaitStatement="(@P1 int,@P2 bigint)DELETE FROM TMSRATEDETAILS WHERE (((PARTITION=5637144576) AND (DATAAREAID=N'001')) AND ((REFTABLEID=@P1) AND (REFRECID=@P2)))",SqlDeadlockHash="deadlock_16FAB3731CED4000_20220621_193840"
Table 66 Tags

Name

Description

host

Hostname of server hosting SQL server instance

LoginName

SQL user_id: it is a domain user

ClientHostName

Host that produced the query

SQLInstance

SQL server instance

WaitObjectname

Name of waited object

WaitIndexname

Name of waited index

Table 67 Fields

Name

Description

NrOfVictims

Integer, number of deadlock’s victims

SQLSessionId

String,

Waittime

Integer, time waited by victim process in seconds

WaitResource

String, waitresource for victim process

WaitMode

String, waitmode for victim process

WaitObject

String, name of wait object for victim process

WaitIndex

String, name of wait index for victim process

WaitStatement

String, victim process statement

SqlDeadlockHash

String, filename to retrieve the xml_deadlock_file

SQLDeadlockStats metric is exposed in a chart to show an overview.

../_images/block-deadlkchart.png

Fig. 185 Deadlocks chart: NrOfVictims field

SQLDeadlockStats metric is also exposed in a table for deeper insights.

../_images/block-deadlktable.png

Fig. 186 Deadlocks table

Microsoft Dynamics AX 2012 & Microsoft Dynamics 365 Finance & Operations Batch Jobs

This part is valid both for

  • Microsoft Dynamics AX 2012

  • Microsoft Dynamics 365 Finance & Operations

the only differences are in tag values.

The main objective is to have visibility on the internal AX batch job scheduling mechanism, in particular it is useful to see when the system is unable to dispose of pending batch jobs.

The results visible in these metrics must then be linked with the other metrics collected if the causes are to be analyzed.

Batch job sessions

Exposed metric: AXBatchOverdueByGrp

The first chart is the same of main dashboard, with the added filter on database name.

../_images/overview-ax-batch-job-overduebatchtask.png

Fig. 188 AXBatchOverdueByGrp chart for cntBatchOverdue field

AXBatchOverdueByGrp metric collects details on overdue batches

AXBatchOverdueByGrp,uniquifier=0,GROUPID=WPAXT_G_11,DBName=DEV6AX,DBServername=AXDBHOST,DBServicename=MSSQLSERVER,SQLInstance=AXDBHOST TotalOverdueMinutes=1i,cntBatchOverdue=1i
Table 68 Tags

Name

Description

uniquifier

Technical tag to avoid duplicates

GROUPID

AX batch job group

DBName

Database name

DBServername

MSSQL server host name

DBServicename

MSSQL server service name

SQLInstance

MSSQL server instance name

Table 69 Fields

Name

Description

TotalOverdueMinutes

Integer, sum over overdue time

cntBatchOverdue

Integer, number of overdue batches

Exposed metric: AXBatchSessionOverviewByAOS

AXBatchSessionOverviewByAOS metric collects details on batch sessions status

AXBatchSessionOverviewByAOS,uniquifier=0,SERVERID=01@AXAOS01,host=AXDBHOST,AOSServer=AXAOS01,AOSInstance=01,DBName=DEV6AX,DBServername=AXDBHOST,DBServicename=MSSQLSERVER,SQLInstance=AXDBHOST maxBatchSessions=16i,freeBatchSessions=5i,runningBatchSessions=11i
Table 70 Tags

Name

Description

uniquifier

Technical tag to avoid duplicates

SERVERID

AOS Service instance name

AOSServer

Hostname of batch AOS Service

AOSInstance

Instance ID of batch AOS Service

DBName

Database name

DBServername

MSSQL server host name

DBServicename

MSSQL server service name

SQLInstance

MSSQL server instance name

Table 71 Fields

Name

Description

maxBatchSessions

Integer, maximum number of active batch sessions

freeBatchSessions

Integer, number of free batch sessions

runningBatchSessions

Integer, number of executing batch sessions

Chart visualizing all running batch sessions per each AOS Server.

../_images/overview-ax-batch-job-runninbatchsessions.png

Fig. 189 AXBatchSessionOverviewByAOS chart for runningBatchSessions field

Chart visualizing all free batch sessions per each AOS Server.

../_images/overview-ax-batch-job-freebatchsessions.png

Fig. 190 AXBatchSessionOverviewByAOS chart for freeBatchSessions field

Batch AOS Server status

To facilitate the link between the batch execution flow and the server status, we summarize two Windows Performance Counters here:

  • Processor::Percent_Processor_Time

    ../_images/overview-ax-batch-job-proctime.png

    Fig. 191 CPU % Time time series charts

  • Memory::Available_KBytes

    ../_images/overview-ax-batch-job-avmem.png

    Fig. 192 Available Memory time series charts

Batch job sessions

Exposed metric: AXBatchOverdue

AXBatchOverdue metric collects details on overdue batch tasks

AXBatchOverdue,uniquifier=0,DBName=DEV6AX,DBServername=AXDBHOST,DBServicename=MSSQLSERVER,SQLInstance=AXDBHOST BOverdueMinutes=10i,GROUPID=\"WPAXT_G_11\",Batchjobid=\"5641145287\",Batchid=\"5655004328\",BCaption=\"Batch task test 1\",BJCaption=\"Batch job test\",Classnumber=\"1013860\"
Table 72 Tags

Name

Description

uniquifier

Technical tag to avoid duplicates

DBName

Database name

DBServername

MSSQL server host name

DBServicename

MSSQL server service name

SQLInstance

MSSQL server instance name

Table 73 Fields

Name

Description

BOverdueMinutes

Integer

GROUPID

String, batch group ID

Batchjobid

String,batch job recid

Batchid

String, batch task recid

BCaption

String, batch task caption

BJCaption

String, batch job caption

Classnumber

String, batch task class number

Same metric is exposed in a chart to show an overview.

../_images/overdue-batch-task-chart.png

Fig. 193 AXBatchOverdue chart for BOverdueMinutes field

and also in a table for deeper insights.

../_images/overdue-batch-task-table.png

Fig. 194 AXBatchOverdue table

Configuration on NetEye

The SQLTrace module extends the ITOA module and shares the structure with it for users, data sources and dashboards.

Table 74 Configuration variables list

Variable Name

Description

<DATABASE>

InfluxDB database where data must be written

<XERETENTIONPOLICY>

InfluxDB retention policy used for sqlXeEvents and sqlXeFetches metrics

InfluxDB Retention Policies for SQLTrace

This paragraph integrates the relative section for the Telegraf agent.

The sqlXeEvents and sqlXeFetches metrics have high cardinality , this problem is limited by choosing an appropriate retention_policy with appropriate duration: our advice is to create a 2-week retention policy.

CREATE RETENTION POLICY "<XERETENTIONPOLICY>" ON "<DATABASE>" DURATION 2w REPLICATION 1 shard duration 6h

Write Data to InfluxDB

This paragraph integrates the relative section for the Telegraf agent configuration.

Let’s create two copies of the [[outputs.influxdb]] section, the first one will write data into default retention policy and the second one into the new <XERETENTIONPOLICY> retention policy.

The first section configures how Telegraf writes to the default InfluxDB retention policy, then we add the namedrop option to prevent sqlXeEvents and sqlXeFetches metrics to be written in default retention policy:

[[outputs.influxdb]]
namedrop = ["sqlXeEvents","sqlXeFetches"]
urls = ["https://influxdb.neteyelocal:8086"]

The second section defines how Telegraf writes to the <XERETENTIONPOLICY> retention policy, then we add the namepass option to force sqlXeEvents and sqlXeFetches metrics to be written in this retention policy:

[[outputs.influxdb]]
namepass = ["sqlXeEvents","sqlXeFetches"]
urls = ["https://influxdb.neteyelocal:8086"]

retention_policy = "<XERETENTIONPOLICY>"

Configuration of SQLTrace

Windows Administrator installing the service must provide a configuration file in toml format syntax. The name of configuration file must be sqltrace.conf.

The SQLTrace agent sends its metrics to NetEye exactly like a Telegraf agent installed on a Windows server, which means that in section [output.nats] are used same address, subject and tls certificates are the same used in *[[outputs.nats]]* section of Telegraf configuration file.

Table 75 Configuration variables list

Variable Name

Description

<MSSQLINSTANCENAME>

MSSQL instance we want to monitor, example: PBZMSSQL063\SQLTEST

<XEVT_SQL_DURATION>

SQL Extended Event Session Name to be used for SQL Query durations analysis, example: WPPERF_SQL_DURATION

<XEVT_SQL_CURSORS>

SQL Extended Event Session Name to be used for SQL Query durations analysis, example: WPPERF_SQL_CURSORS

<XEVT_BLOCKING_DATA>

SQL Extended Event Session Name to be used for SQL Query durations analysis, example: WPPERF_BLOCKING_DATA

<QUERIESPATH>

Path where query files are sored, example: C:\MSSQLTrace\PBZMSSQL063\queries

<PLANSPATH>

Path where query files are sored, example: C:\MSSQLTrace\PBZMSSQL063\plans

<DEADLOCKSPATH>

Path where query files are sored, example: C:\MSSQLTrace\PBZMSSQL063\deadlocks

<DATABASENAME>

Database name for extention monitoring modules

<NATSADDRESS>

NATS io endpoint, example nats://neteye-sat1.lan.local:4222

<NATSSUBJECT>

NATS subject to identify the publisher/producer of data, on neteye it is the same used for Telegraf agent: telegraf.metrics

<CA_PATH>

Path to valid CA, example C:/SQLTrace/certs/neteye-sat1-root-ca.crt

<CERT_PATH>

Path to certificate, example C:/SQLTrace/certs/telegrafmetrics-neteye-sat1.crt.pem

<PRIVATEKEY_PATH>

Path to private key, example C:/SQLTrace/certs/private/telegrafmetrics-neteye-sat1.key.pem

## SQL extended Events Channel Configuration
[main]
#Name of SQL Server instance to monitor and collect advanced performance data
#Required: YES
#
dataSource="<MSSQLINSTANCENAME>" #(mandatory) sql instance name, remember backslash must be escaped \\

## Define SQL Extended Event Session names for advanced performance analysis.
# this names are used in the Prepair4SQLDMVMonitor.ps1 to created the Sessions. You can choose the names for this SQL XE Sessions as you like.
# The names must be unique on the SQL Server Instance.
# The SQL Agent need this names to collect, analyse and send this performance data.
#
# SQL Extended Event Session Name to be used for SQL Query durations analysis
# Required: no
# Default value is empty. => query performance data are not collected
queriesProbe="<XEVT_SQL_DURATION>"

# SQL Extended Event Session Name to be used for SQL cursor fetch durations analysis
# Required: no
# Default value is empty. => cursor fetch performance data are not collected
#
fetchesProbe="<XEVT_SQL_CURSORS>"

#SQL Extended Event Session Name to be used for SQL Blocking and Deadlock analysis.
#Required: no
# Default value is empty. => blocking and deadlocking data are not collected
#
blockingsProbe="<XEVT_BLOCKING_DATA>"

## SQL Queries and SQL Queryplan are stored on local disk. Please calculate approx 15-20 GB of Storage space for this file locations
## The Account running the SQLDMVMonitor must have read write permissions on that local file path
[storage.fileSystem]
# Path where queries are stored (backslash must be escaped \\)
# Required: YES
#
queriespath = "<QUERIESPATH>"

# Path where queryplans are stored (backslash must be escaped \\)
# Required: YES
#
planspath = "<PLANSPATH>"

# Path where deadlocks are stored (backslash must be escaped \\)
# Required: NO, if not present queriespath is used
#
#deadlockspath = "<DEADLOCKSPATH>"

## compress query plan files as zip in the directory to save space, default true
# zipped = true

## queryplan and query files retention in days (if lower than 1 it is set to 1, default 15)
## days the files will be taken in the queriespath and planspath. It check the modified time of files
# retentionInterval = 15

## interval for touching the plan and query files. Touch will be refresh the  modifiedtime attribute of the file.
## if lower than 1, set to 1, default 30 minutes
# updateInterval = 30

## interval for check of files actually present in filesystem  (if neteyeremotestorage is active remote check is also triggered)
## if lower than 1, set to 1, default 24 hours
# checkIntervalHours = 24

## Microsoft Dynamics AX 2012: related options
# Required: No
#
# [dmv.DX.AX2012]
# Name of AX Business DB located on the datasource. This is used to calculate AX 2012 Batch Job and Task overdue
# default value : empty (no AX Business DB)
# Required: No
# databaseName = "<DATABASENAME>" #AX2012 database name

## SQL server related options
# Required: No
#
# [dmv.DX.MSSQL]
# Database name for advanced monitoring (e.g. Database growth of tables and indexes)
# default value ="master"
# Required: NO
# databaseName = "<DATABASENAME>"

## Send Measurements to NATS
[output.nats]
# URL(address) of NATS Server
# Requried:YES
#
address = "<NATSADDRESS>" #(mandatory) nats-server endpoint

## NATS subject to identify the publisher/producer of data
# Requried:YES
#
subject = "<NATSSUBJECT>" #(mandatory) nats-server subject

## NATS TLS Config
# set to true TLS is used.
# DEFAULT value is false
#
# secure = true
secure = true #set as true if TLS is needed, if omitted default value is false

# TLS Config Parameters are required if parameter secure is set to true
# tls_ca = "<CA_PATH>" #CA_PATH
# tls_cert = "<CERT_PATH>"  #certificate path
# tls_key = "<PRIVATEKEY_PATH>"   #private key path

#defines the nats channel to send keepalive & monitoring data infos to NetEye server, disabled by default
#[output.tornado]
#topic = "tornado_nats_json.<topic>" #mandatory, it represents the subject on nats-server (configured in tornado_nats_json_collector topics on NetEye)
#keepaliveInterval = 5 #interval in seconds for keepalive message, if omitted default value is 5 seconds;
#monitordataInterval = 30 #interval in seconds for monitordata message, if omitted default value is 30 seconds;
#hostnameformat="fullqualified" #default is "fullqualified", otherwise put "hostonly"
#tornado_dedicated_connection: all the following settings must be used to open a dedicated connection for tornado messages (in case destination addresses and/or certifcate are different)
#address = "TORNADO-NATS-ADDRESS" #optional (see tornado_dedicated_connection above)
#secure = true #optional (see tornado_dedicated_connection above) set as true if TLS is needed, if omitted default value is false
#tls_cert = "<PATHVALUE>\\<filename>.crt.pem" #optional (see tornado_dedicated_connection above) certificate path
#tls_key = "<PATHVALUE>\\<filename>.key.pem"  #optional (see tornado_dedicated_connection above) private key path

#base settings (embedded in agent)
#[output.nats.retention_policy_tag]
#active=true #if false, this feature is disabled: no retention tag is sent
#default="autogen" # default tag value for all measurements that are not exlicitly defined in (retention_policy_tag.<>  measurements) defining the retention on influx
#tag_name="retention_policy" # tag name on the measurments which define the retention

#[output.nats.retention_policy_tag.queryhashcodemetrics] # retention_policy_tag.<retentionvalue> # <retentionvalue> is retention tag value for measurements in "measurements" array following
#measurements = ["sqlXeEvents","sqlXeFetches"] # measurment names to which retention policy example tag queryhashcodemetrics is added

#
[output.neteyeremotestorage]# this part is request to upload sql files on neteye-saas (where mssql-fileserver is installed and configured)
outChannel = "sqltrace.out.perfmon-dev.wp.lan" #mandatory, nats publish channel, for files upload, it is not allowed to use the same value as inChannel
inChannel = "sqltrace.in.perfmon-dev.wp.lan" #mandatory, nats subscription channel, used to receive feedbacks from server (file upload completed ...), it is not allowed to use the same value as outChannel
#connectioncheckIntervalSeconds = 15 #optional, seconds interval for ping test (default is 15 seconds)
#neteyeremotestorage_dedicated_connection: all the following settings must be used to open a dedicated connection for neteyeremotestorage messages (in case destination addresses and/or certifcate are different)
#address = "NETEYEREMOTESTORAGE-NATS-ADDRESS" #optional (see neteyeremotestorage_dedicated_connection above)
#secure = true #optional (see neteyeremotestorage_dedicated_connection above) set as true if TLS is needed, if omitted default value is false
#tls_cert = "<PATHVALUE>\\<filename>.crt.pem" #optional (see neteyeremotestorage_dedicated_connection above) certificate path
#tls_key = "<PATHVALUE>\\<filename>.key.pem"  #optional (see neteyeremotestorage_dedicated_connection above) private key path

Installation

The Installation process is divided in three phases:

  1. Define the configuration file sqltrace.conf

  2. Setup the SQL Server Instance with the required permissions and configurations

  3. Install the SQL DMV Monitor Service

Configuration file location

The setup will register the location of the config file in the startup parameters of the service. The file will not be copied: for this it is important that a secure location is used for this config file.

The service reads the config file at each start. The config file can be located also on a local path or on a shared path.

Please take into consideration that the user that is installing the SQL DMV Monitor Service and the SQLTrace Service Account under which the SQL DMV Monitor Service is running must have read access to this file.

Note

SQLTrace Service Account: Windows account under which the SQL DMV Monitor Service can run. The account must be a Windows account or a valid gMSA.

Setup of SQL Server Instance

Prerequirements

  1. PowerShell script requires Microsoft System CLR Types for Microsoft® SQL Server® 2012 and Microsoft SQL Server® 2012 Shared Management Objects installed on the computer where you run the script. The SMO must be at least for verions SQL 2012.

  2. User executing the PowerShell script must have SysAdmin rights on the SQL Server Instance

  3. A valid configuration file sqltrace.conf

  4. SQLTrace Service Account under which the SQL DMV Monitor Service will run

  5. SQLExtEventDir path where the SQL Server Service should write the SQL Extended Event files

Note

SQLExtEventDir is checked at each start from SQL Server Service.

PowerShell script

Run the script Prepair4SQLDMVMonitor.ps1 provided together with msi file.

The script will validate and set the needed configurations and permissions for the SQL Server Instance which you want to monitor. As Result the script returns a result which describes if the SQL Server Instance is prepared successfully.

A detailed description regarding the script parameters can be found in the PowerShell script.

Examples:

Validate if permissions and configurations are set without applying them: useful to check and validate configuration. SQLExtEventDir path to C:tmp, username for SQLTrace wp\test. Expected result for $result.SQLInstancePrepared is True.

$result=.\Prepair4SQLDMVMonitor.ps1 -SQLTraceConfigFile C:\tmp\sqltrace.conf -SQLExtEventDir C:\tmp -SQLTraceServiceaccount 'wp\test' -OnlyValidate
$result.SQLInstancePrepared

Apply permissions and configurations, SQLExtEventDir path to C:tmp, username for SQLTrace wp\test. Expected result is True.

$result=.\Prepair4SQLDMVMonitor.ps1 -SQLTraceConfigFile C:\tmp\sqltrace.conf -SQLExtEventDir C:\tmp -SQLTraceServiceaccount 'wp\test'
$result.SQLInstancePrepared

Installation Prerequisites

User running installation must have Windows local administration rights.

Table 76 System Requirements

Name

Windows Operation System: Windows 2012 R2 or higher (64 Bit)

Table 77 Software requirements

Name

.NET Framework 4.5.2 or higher

Microsoft Visual C++ 2010 SP1 Redistributable Package (x64)

Installing the SQL DMV Monitor Service

Optionally a SQLTrace Admin Account can be defined: this allows users other than the Windows Administrator to have the permissions to restart the service. For example it is useful for the purpose of managing the service remotely via PowerShell.

UI installation

Start the installer and follow each step.

Silent mode installation

Run msiexec from command line, here you can see a detailed description regarding msiexec parameters.

To run the installation in silent mode use following syntax:

msiexec /i "SQLDMVMonitor-x64.msi" /qn /L*V <logfile> <SQL DMV Setup Parameters>

Setup Parameters

Table 78 <SQL DMV Setup Parameters>

Variable Name

Description

INSTALLFOLDER

Path where the binaries will be installed. Default <ProgramFiles>SQLDMVTracing

LICENSEACCEPTED

Mandatory - Value must be set to “1” to confirm and accept License agreement. Default is “0”

SQLDMVTRCCONFDIR

Path where the <SQLDMVCONFIG> file must exist. This parameter is REQUIRED. The setup will register the location of the config file in the startup parameters of the service (see service.msc - SQLDMVMonitor). The file will not be copied. For this it is important that a secure location is used for this config file. The service read the config file each time it is started. The config file can be located also on a local path or on a shared path. Please take into consideration that the user that is installing the SQL DMV Tracing Service and the Account under which the SQL DMV Service is running must have read access to this file. Setup will check that in this directory or subdirectory a valid config file with then name sqltrace.conf exist.

The Setup check that a config file exist in 3 directories using this sequence:

  1. <SQLDMVTRCCONFDIR>\<computername>.<FullComputerDomainname>\sqltrace.conf

  2. <SQLDMVTRCCONFDIR>\<computername>\sqltrace.conf

  3. <SQLDMVTRCCONFDIR>\sqltrace.conf

If file is found, setup will skip further validations. This means if File is found on Point 1., Point 2 and 3 are skipped.

Important: The setup is following this rule to find the config file. The service is not following this rule to find the config file. The service works with the established location/Path of the config file, passed as service startup parameter.

SQLDMVTRCSERVICEACCOUNT

Windows Account whith which the SQL DMV Tracing service will run. e.g. <domain\accountname> . Please take into consideration that the PowerShell preparescript has set the needed permissions for this user.

SQLDMVTRCSERVICEACCOUNTPWD

Passsword of the Windows Account. set Password “” if you use a gMSA

SQLDMVTRCASSIGNADMIN

If set to 1 a Windows Account/Group defined with param SQLDMVTRCADMINACCOUNT becomes the permissions to stop/start/query the SQL DMV Tracing Service.Default is 0 (false)

SQLDMVTRCADMINACCOUNT

Windows Account/Group which will have the permissions to start/stop the SQL DMV service. Setup will assign the appropriate permissions. Specify <Domainaccountname> or <Domaingroup>. Mandatory if SQLDMVTRCADMINACCOUNT=1

MSINEWINSTANCE

If set to 1 you can install until 5 additional sqldmvmonitor Agents

TRANSFORMS

String Value define which sqldmvmonitor Agent Instance can be installed allowed values are: “:I01”,”:I02”,”:I03”,”:I04”,”:I05”

Examples of installation

SQLTrace Service Account is set to wp\sqlsvctrc. SQLTrace Admin Account is not set. Install dir is default one. SQL DMV Monitor config file is located in C:tmp:

msiexec /i "SQLDMVMonitor-<version>-x64.msi" /qn /L*V c:\tmp\install.log SQLDMVTRCCONFDIR="c:\tmp"  LICENSEACCEPTED="1" SQLDMVTRCSERVICEACCOUNT="wp\sqlsvctrc" SQLDMVTRCSERVICEACCOUNTPWD="password" SQLDMVTRCASSIGNADMIN=0

SQLTrace Service Account is set to wp\sqlsvctrc. SQLTrace Admin Account is set to wp\SQLDMVadmingrp . Install dir is default. SQL DMV config file is located in C:tmp:

msiexec /i "SQLDMVMonitor-<version>-x64.msi" /qn /L*V c:\tmp\install.log SQLDMVTRCCONFDIR="c:\tmp"  LICENSEACCEPTED="1" SQLDMVTRCSERVICEACCOUNT="wp\sqlsvctrc" SQLDMVTRCSERVICEACCOUNTPWD="password" SQLDMVTRCASSIGNADMIN=1  SQLDMVTRCADMINACCOUNT="wp\SQLDMVadmingrp"

Install SQL DMV Monitor with specific Instance 01 installing not in quite mode:

msiexec /i sqldmvmonitor-<version>-x64.msi /L*V c:\tmp\install-I01.log MSINEWINSTANCE=1 TRANSFORMS=":I01"

Return codes msiexec

In silent mode you can verify if installation was successful by checking the exitcode of msiexec.

If exit code is 0 installation was successful. For details of error codes refer to error Error codes.

Setup Error and Failures

Setup will fail if:

  • Config file is not found/readable

  • Content of config file is not valid:

    • Missing or wrong NATS server

    • Missing or wrong NATS port

Details of error can be found in the msi log file or in the application eventlog.

Table 79 Setup Error and Failures

Error

Explanation

Invalid command line argument. Consult the Windows Installer SDK for detailed command line help.

This happens if you run the msi using the parameter for Multiinstance e.g. MSINEWINSTANCE=1 TRANSFORMS=”:I01”
The error occures if the Instance is already installed. In the msi log File you will find following error.
Extract from log: “Specified instance {XXXXXXXX-XXXX-XXXX-XXXX-XXXXXXXXXXXX} via transform is already installed. MSINEWINSTANCE requires a new instance that is not installed. MainEngineThread is returning 1639”

Remote Storage Test

It is possibile to test the connection to remote NetEye file storage using the option –test-remotestorage:

"C:\Program Files\SQLDMVMonitor\I00\DMVmonitor.exe" -config ".\sqltrace.conf" -instanceId I00  --test-remotestorage

Tornado Test

It is possible to send Tornado test messages using the option –test-tornado:

"C:\Program Files\SQLDMVMonitor\I00\DMVmonitor.exe" -config ".\sqltrace.conf" -instanceId I00  --test-tornado

Uninstall instances of SQL DMV Monitor Service

From Control Panel

Find SQLDMVMonitor in installed programs list then right mouse click and choose option Uninstall.

In silent mode

Using the product code (see list of Product Codes).

msiexec /x "{XXXXXXXX-XXXX-XXXX-XXXX-XXXXXXXXXXXX}" /qn /L*V c:\tmp\uninstall.log

Upgrade from a Previous Version

Each upgrade will be handled as Major Upgrade. During Upgrade Windows Installer will uninstall previous version before running the installation.

Windows Installer checks the current installed version using the Product Code Guid of the msi bundle: this is important when you deploy the agent using e.g. Powershell DSC.

The ProductCode for the actual version can be found in this document under table List of ProductCode for released versions.

Please take in consideration that you have to run the upgrade/installation with the necessary setup parameters (like first installation). If during installation of the new version an error occurs, the old version will not be restored!

Note

upgrading from version 0.1.x during uninstall service is stopped but process is still running for approx 30 sec. To solve stop the service manually and check that process DMVMonitor is removed, then run the msi bundle.

Migrating to Version 0.4.x

When upgrading to Version 0.4.x from previous versions xevent session on MSSQL instance must be reconfigured for compatibility reasons: run the powershell script Prepair4SQLDMVMonitor.ps1 (as described in Instance setup).

This is needed to get all the required information about query fetches. The correct steps to migrate to the new version is:

  1. Stop SQL DMV Monitor Service (DMVmonitor)

  2. Run Prepair4SQLDMVMonitor.ps1 with the needed parameters (same parameters as during first setup)

  3. Upgrade to new version running msi bundle of version 0.4.x (SQLDMVMonitor-v0.4.1-x64.msi)

Note

With the introduction of 0.4 the field types of Maxduration and MaxLastBatch in the measurment SQLLongTransaction has been changed from float to integer: this change could potentially cause an incompatibility issue on you time-series database. To solve the issue on InfluxDB, you have to drop the old measurment.

List of ProductCode for released versions

Table 80 Product Codes

Version

Productcodes for each instance

0.6.3

Default={74A96618-F674-4014-8BEE-33DE94641FAF}
I01={09A594B7-C726-4240-88F1-8217B523E1C0}
I02={917F1862-E818-48D8-BF5E-D25075CFE20D}
I03={9BD4070D-1929-442C-B497-F052F53F841B}
I04={9D73E337-0CCF-44F0-8532-32EC86959014}
I05={04800B00-5D59-4F32-A486-14E48B219042}

0.6.2

Default={C11199B6-A319-4656-BD1B-269B82082722}
I01=92412086-2F9E-4733-B540-5A74CC714383}
I02=C1B55E60-1F00-4E2B-8093-A873E428B044}
I03=EE7130A1-C6AA-4DE4-958D-7325B6B6D47F}
I04=93EE9F7E-EE4B-4A49-B98B-4F0391A00080}
I05=C3E5AA61-B332-4CA0-A9CB-B571B8B9E4FE}

0.6.1

Default={48CFD745-41BB-4512-9B86-0920BEDFA7E3}
I01={162DE559-D1FE-44FA-AA80-E19A981B2227}
I02={74E402EA-97DC-4D34-8D7B-AF4CD9420375}
I03={942BCAD3-4241-4BDB-8CF9-9090DF4AA8B2}
I04={654C0EAB-EFA5-4578-9CF3-0DE91375E8CB}
I05={828507F3-6F4D-4D64-8C33-2ECD606FC6DF}

0.5.1

Default={CFFC1BC5-8CD6-4599-82C9-0AE5AC893794}
I01={C4D30AEA-767C-429C-A81A-1F2A8E17AAC6}
I02={73977971-69EB-4DDD-89F1-4013CCA81E1E}
I03={A6996681-A88D-4E14-8363-F425ECB6B87A}
I04={035D7D15-BDC3-4C2D-840A-BF6B5D89A631}
I05={A85323A3-1427-4558-8F7C-80F9460B18A1}

0.5.0

Default={09564825-3DCD-4DC2-96B7-B654710FE633}
I01={91237714-F050-4FF5-8822-898E84FD4EDF}
I02={1CD5C97B-B4F9-46CA-BAD6-19B51FF12639}
I03={AD0578DF-0E16-41A8-B46E-387474F913F1}
I04={564D433B-A35D-496C-8DA2-60DBBC1361AD}
I05={0BEB3595-41C3-4C25-8FF4-D1EB85336D1B}

0.4.1

Default={D02F7B07-52D9-4A38-BCAF-05A87E1F2EC7}
I01={DFE7859D-6BE4-4BC1-84C9-526D456690D1}
I02={4E9F6545-ADA6-40B6-9C70-8AAD9E4EFCBA}
I03={D3D5A5A1-9D98-4184-B14B-53F4E935BD5A}
I04={0AF49B0C-D026-4AEA-835C-1F60AD41EE31}
I05={F1C45643-0F46-4AB9-B1F4-A7B8ECFBCC34}

0.4.0

Default={AE113811-DAAD-47CB-ACB6-FAD8AC009663}
I01={5951BFAA-5AC0-4286-80E5-A4AF36C9C0F4}
I02={F9482AE2-59D5-4268-BFE5-FB520C43BD7B}
I03={C616CCCD-2C42-466F-A4FF-447AC21A283D}
I04={E8245FCC-57C0-4A99-9D7C-83C6FAF2C7B0}
I05={0EEC6F6A-7033-4B61-9865-267320542EBB}

0.3.1

Default={D0E7F4AF-82C4-4B58-87C9-89BDDBEE4779}
I01={45B4717D-9B42-4998-B98D-14729EB3290D}
I02={0E5CCFB0-9690-40A2-B216-548977CD54BC}
I03={E69C1A2F-5B5F-435D-8E6B-1E585A740BA8}
I04={E783C535-A7F1-4541-888B-FC0F8BCD5411}
I05={2FD332AC-4ED9-4A24-90EC-5CEB95006E4E}

0.3.0

Default={E05B5F69-C9DF-4C2C-8F0D-6A09030B83DB}
I01={C6C6D7B4-7C12-4558-82E8-432F3202CCF6}
I02={FDF69F06-8BBA-4B04-A775-4202DBC3DBA4}
I03={4C55C3F6-CA64-44B9-BC42-26E40CAE5544}
I04={A8384887-7F93-488D-81B1-BA76CA59FB61}
I05={74C3EBFF-DB81-46DE-B941-BD686CFEF718}

0.2.1

Default={001CA7CF-D87D-4108-A3B8-D271402FF92F}
I01={C6B860DE-634A-4146-9B64-A3AE6EC0A409}
I02={92FEB3FD-5CCB-4CDF-B531-8E5015E64008}
I03={5508CC78-DABF-49CC-B217-A3AD2E294B86}
I04={20D1C901-8DCB-4280-899D-AF05D33B0636}
I05={3D7D125F-51E3-414F-BE1B-19B9BEFA29F7}

0.2.0

Default={49689FD2-D834-4C3F-97FF-BC3BD7FEDAF0}
I01={7C41FC5C-7694-45C2-B937-8AD4AEF5F952}
I02={C1FF4CB6-26D4-4361-958F-4F8FC9BFCC0E}
I03={A6F06ACB-009E-47B8-A1AD-612946392825}
I04={9DB323F7-E431-465F-BD4D-42F570AE9837}
I05={3259D96B-3A1A-46F0-9D7F-A4A43EC44FE1}

0.1.1

Default={9A9628AC-47CC-4E08-B9A8-257FFC6A7EAC}
