Test your Configuration

Warning

Currently Tornado does not support the testing of the iterator node. It will always appear as not matched.

Test Event panel serves as a helper tool that can be applied at various stages of building your configuration.

The tool allows you to simulate incoming events (such as monitoring events, network events, email or SMS messages) in order to check if the Processing Tree was configured in a proper way, i.e. Filters’ structure is working as expected, or to test that the rules you configure will properly match those events and correctly invoke the chosen actions.

It can also appear to be helpful for checking the correctness of the data provided and conditions set at the stage of extracting variables for further usage in Rule creation.

Use the Test Panel button in the top right corner of the screen to open the panel.

Note

In order to check the correctness of a Draft without impacting the deployed configuration, make sure you’re running a test in Edit mode. If the Edit mode is set to OFF, the deployed configuration will be used for a test.

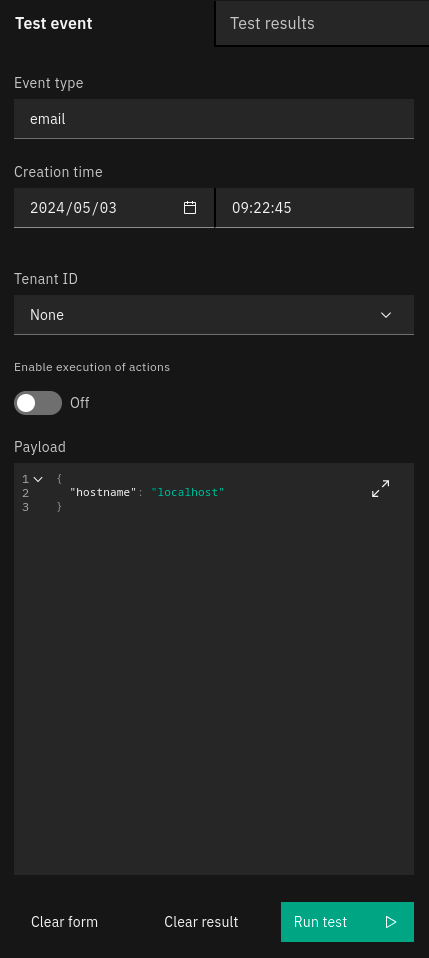

Test events can be created by providing data in a dedicated form:

Define the Event type, e.g. email, sms, snmptrap, etc., and creation time of an Event. Tenants selection is only available for the Admin users. Please check Tornado Multitenancy for more information on running Tornado in tenant-aware installations.

Enable execution of actions option should be switched OFF in case you’re only checking the correctness of the draft, and not matching events to the rules within a ruleset.

Now you can execute a test by clicking “Run Test” button.

The Event is sent to Tornado and the outcome of the operation will be reported in the Processing Tree. Following the yellow line it is possible to see the path that the event has taken. The nodes that have matched the event are distinguishable by a full yellow lightning bolt while those partially matched have an empty bolt.

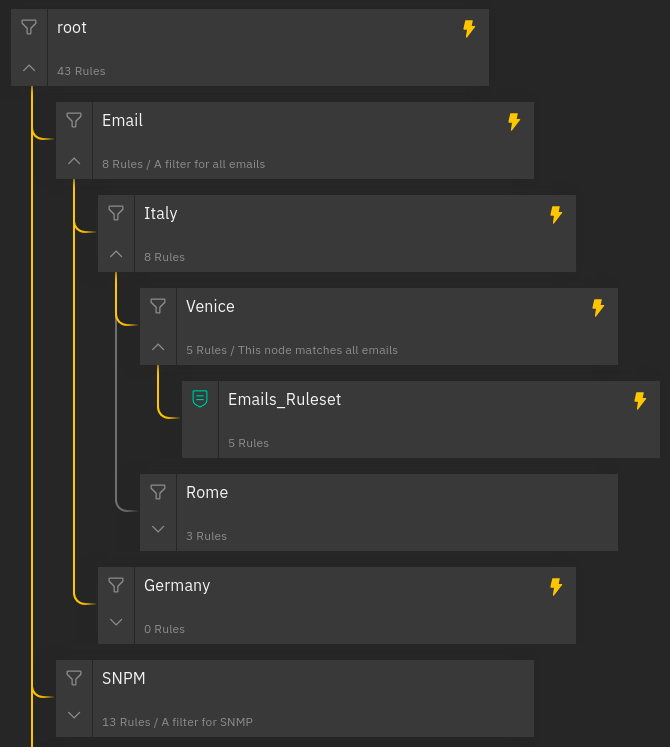

Fig. 149 A Processing Tree with an event result

While checking if an Event matches the rules within the ruleset, for indication of the test outcome one of the following states is used:

• matched: If a rule matched the Event.

• stopped: If a rule matched the Event and then stopped the execution flow. This happens if the continue flag of the rule is set to false.

• partially matched: If where condition of the Rule was matched but it was not possible to process the required extracted variables.

• not matched: If the rule did not match the Event.

In Test Result tab, the list of errors, extracted variables and triggered actions can be found.

Clicking any of the encountered errors will automatically focus on the corresponding variable or action in the Processing Tree that originated it.

Please note that whenever multiple actions are being tested sequentially inside a rule, and an error is encountered on any of them, the execution flow will be stopped and the following actions will not be tested until the error is fixed.

The scope of errors is global, and will be shown in the whole processing tree even if no rulesets have been selected.

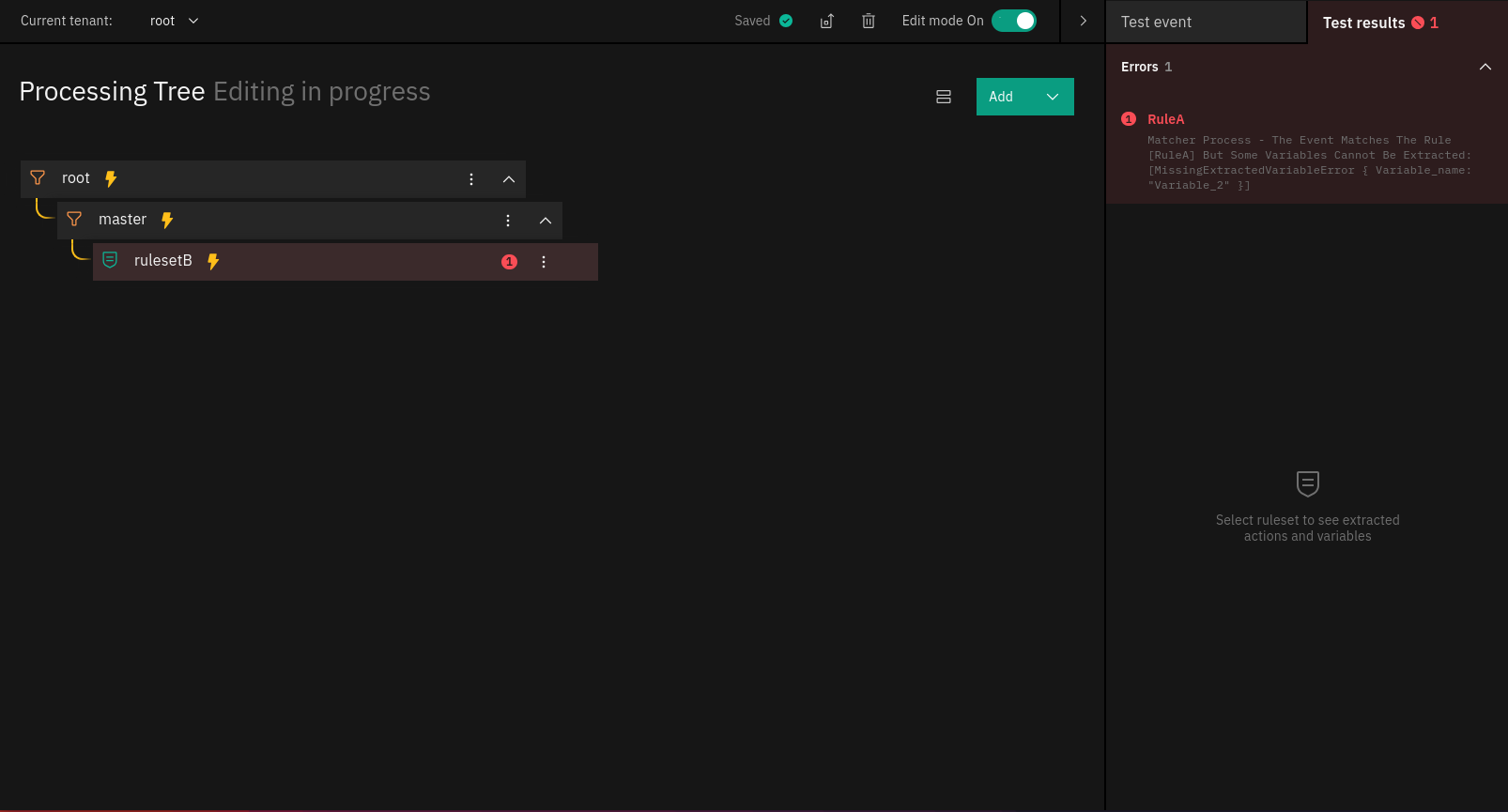

Fig. 150 Errors are displayed all over the Processing Tree

If no ruleset is selected when running the Test Event, only errors will be shown but there will be no test results available. Please select a Ruleset to see the results as prompted in the UI.

As soon as you select the desired ruleset, the list of extracted variables and triggered actions related to this ruleset is displayed. Click on one of the extracted variables to see the details of the WITH tab of a corresponding rule in the Processing Tree.

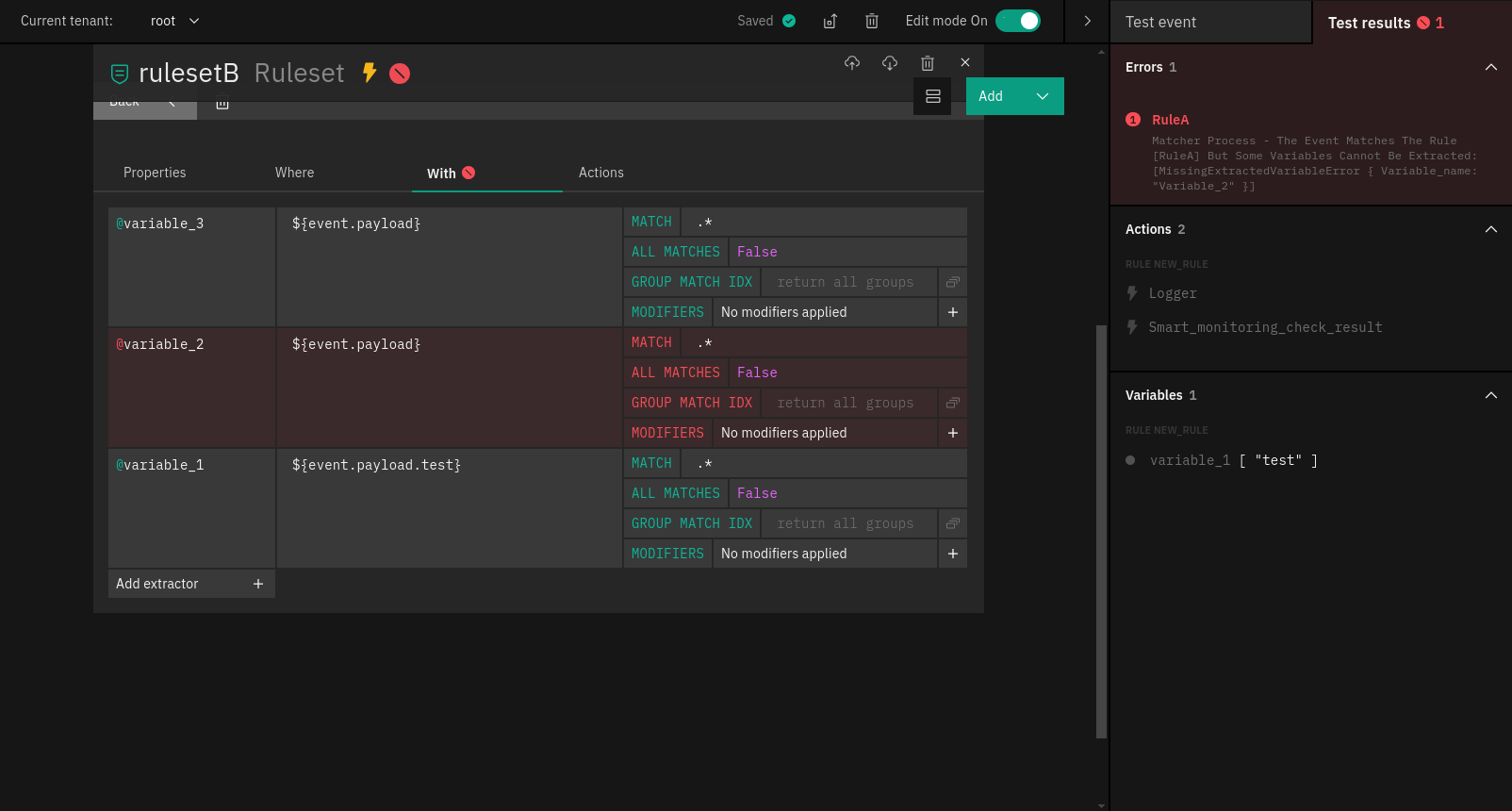

Fig. 151 Automatic focus on rule action or variable with errors detected

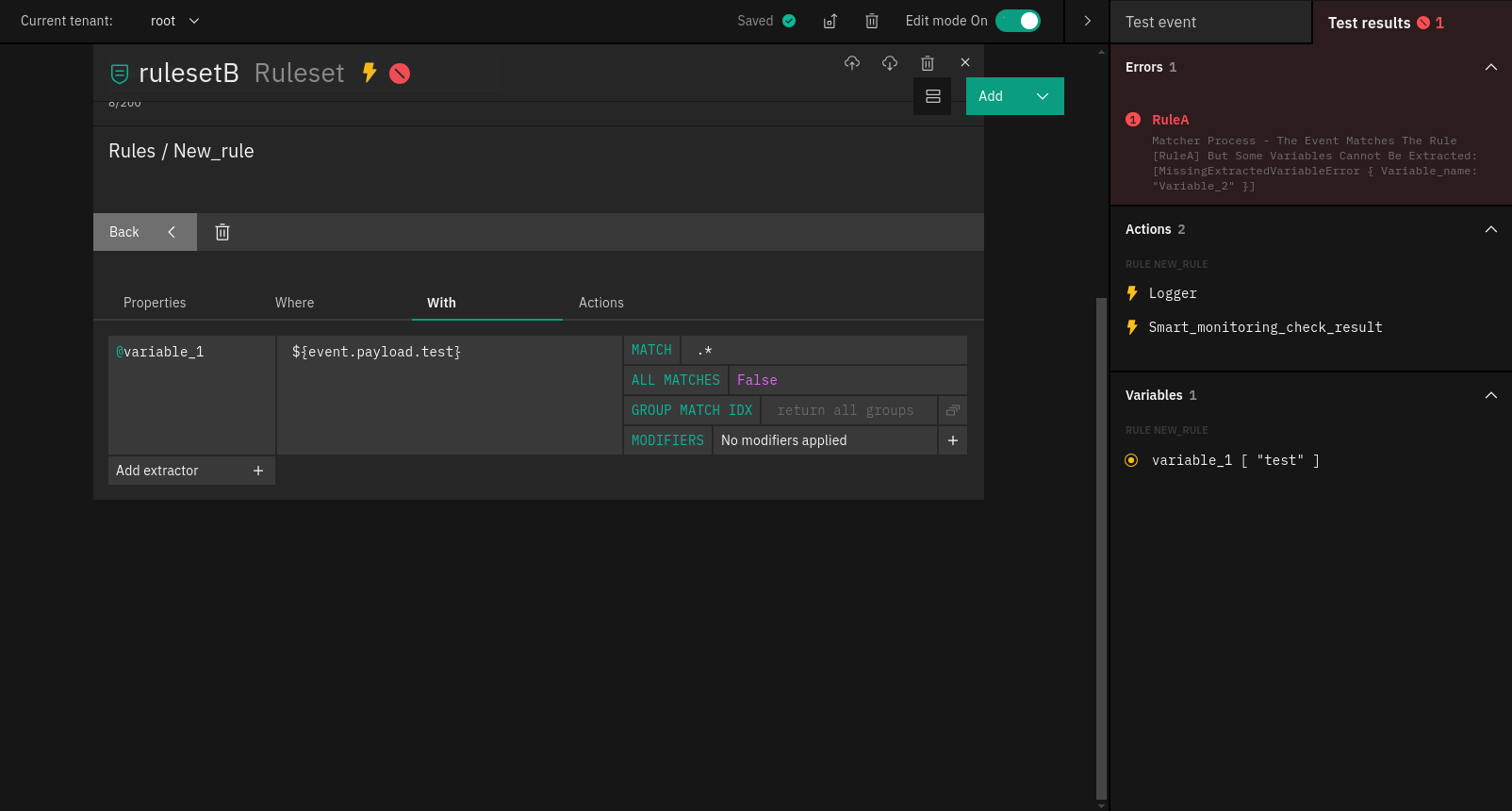

Fig. 152 Automatic focus on rule WITH once the variable is clicked

Same behaviour applies to actions results. You can also see a complete payload by expanding the action result, and copy the payload in expanded view.

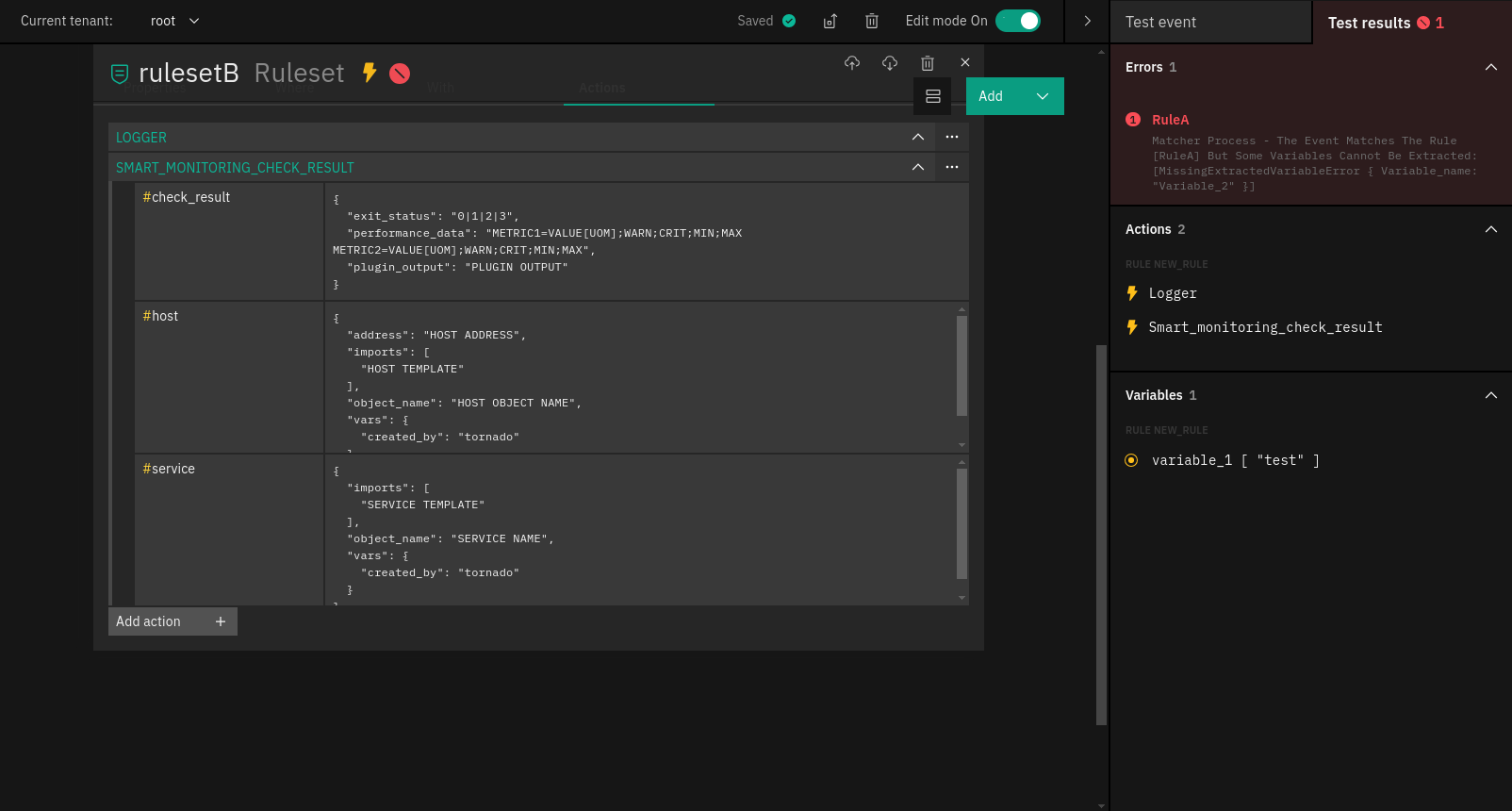

Fig. 153 Executed action with expanded payload
