Designer: Interface Overview

The Alyvix Designer interface consists of two elements:

• A screen capture image to use for creating and resizing selections and regions of interest around visual elements

• A panel for indicating how those visual elements should be interpreted and interacted with

Although Designer is intended to be used in conjunction with Alyvix Editor, you can also run it as a standalone component from the command line as follows (you can find information about its command arguments here):

C:\Alyvix\testcases> alyvix_designer

When a screen grab begins, the current screen is captured (it will turn white for a second while the capture process is underway). It then displays the screen capture at full resolution with purple crosshairs that track the mouse, and a semi-transparent reminder PRESS ESC TO OPEN DIALOG is overlaid at the top left as shown here:

Tip

Having a second monitor will enable you to mark selections and regions of interest with Alyvix on one screen, while the second screen can still be used for other applications. At the moment, Alyvix can only grab the screen on the main monitor (monitor 0).

Each screen capture is associated with a test case object, which can recognize and interact with up to three groups of visual elements. The color of the crosshairs indicates whether you are working with the first (purple/red), second (green), or third (blue) group.

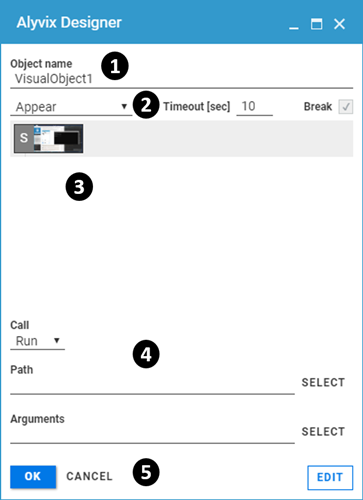

Pressing Escape will bring up the Designer interface as in the following screenshot, where no groups (or components) have yet been defined. The principle interface elements are (the standalone version of Alyvix Designer is shown here):

1. The Object name (title) of the test case object, which together with the file name is used to uniquely identify this test case object in Alyvix Selector and Editor

2. Test case object options, which affect all visual elements in the component tree as a whole; when run from Alyvix Editor, the Timeout and Break options will be shown instead in the Selector panel

3. The component tree subpanel, showing all defined selections and regions of interest that can be interacted with along with their type (image, region or text)

4. Component options, which depend on the type you assign to the currently selected component in the component tree

5. Interface controls that allow you to either continue editing on the screen capture, or exit Designer.

When Designer is started without any arguments as above, it assigns the default name VisualObject1 to the test case object, along with the default options Appear, Timeout [sec]: 10, and Break: Yes.

When no visual elements have been selected from the screen capture, the component tree will be empty with only a single root element marked S, along with the thumbnail of the full screen capture.

Selections, Subselections and Regions of Interest

To add a new visual component to the tree, you must be in capture mode. If instead the Designer or Editor interface is visible, press EDIT in the bottom right hand of the panel to return to the screen capture interface containing the crosshairs.

Selections (and subselections) can be made with the mouse in one of two ways:

• Manually: Hold the left mouse button down to create a selection or subselection (drawing a rectangle around the desired area), and then release when done.

• Autocontour: Right click on a visual element to use Alyvix’s visual recognizer to automatically determine the relevant selection or subselection. Candidate elements can be discovered by pressing Space, and then pressing it a second time to return to the standard screen capture.

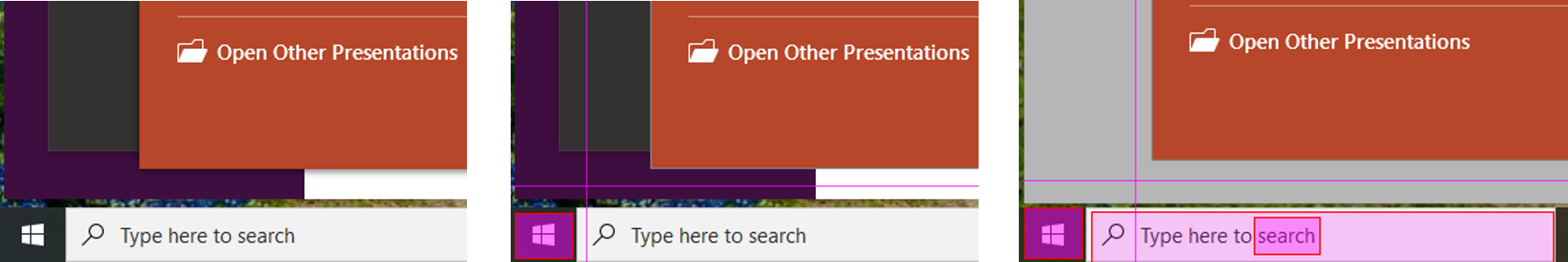

For instance, you can manually select the Windows Start button using the left mouse button as shown in the middle image here:

After making a selection, you can then make up to 4 subselections within that group, where their positions will be relative to the main selection. For instance in the example image above, a subselection has been made containing the Windows Cortana search box.

Unlike the main selection, a subselection consists of two overlapping areas rather than a single one. You can resize the two areas independently, although the smaller box, which is the subselection itself, will always remain contained within the larger one, known as the region of interest (or RoI).

The subselection represents what Alyvix should be looking for, while the region of interest represents the space in which it should search for that subselection, relative to the main selection. The region of interest can be expanded to the edges of the screen if necessary, which is useful for example when windows or panels can change size dynamically.

Tip

Making the region of interest wider or taller can be very helpful for GUI elements that “float” relative to the anchoring selection, such as the window controls when a window is resized.

In order for a group to be considered matched, ALL selections and subselections (within their respective regions of interest) must match the screen at the same time. In turn, in order for a test case object to be considered matched, ALL of its groups must match the screen at the same time.

When creating components, the following keyboard shortcuts are available:

Shortcut	Focus is on	Resulting Action
LeftClick(Hold)	<Nothing>	Create a selection or subselection
LeftClick(Hold)	Selection	Move a selection or subselection somewhere else
RightClick	<Nothing>	Autocontour the screen element around the pointer
RightClick	RoI Edges	Push the edge of the RoI under the mouse all the way to the border of the screen.
Ctrl + LeftClick	Subselection	Reset all RoI edges of the subselection to their defaults.
Ctrl + RightClick	Subselection	Remove an entire component (subselection and RoI).
Ctrl + Z	Component	Undo the most recently added component
Ctrl + Y	Component	Re-add the component just removed

Returning from Screen Capture Mode

When in screen capture mode, pressing the Escape key will return you to either the Alyvix Designer or Editor interface. As you make new selections and subselections, they will appear as components within the component tree as shown here:

Continuing the example from above, the main selection (the Windows Start button) is automatically set as the group element since it was selected first, while the second area (the Cortana search box) is set as the first component (subselection) within that group.

Interface Controls

At the bottom of the Designer panel below the component tree are three actions:

• OK — Save the current test case and exit. If you did not supply a file name when you started Designer, it will use the value for Object name as the file name.

• CANCEL — Exit Designer without saving the test case.

• EDIT — Return to the screen capture interface.
